PVDF Aluminum Sheet

Our company specialized in aluminum coil /sheet/foil product

  • color coated prepainted aluminum coil

PVDF Aluminum Sheet

Thickness:0.06-3.0 mm

Width:100-1600 mm

Length:Less than 6000mm or customized

Weight:0.5-7.0 tons per pallet or customized

Temper:HO-H24

Color: Solid color as per RAL Code, wood color, marble color, or customized

Surface treatment:Color coated embossed

Painting type: PVDF (PPG) and PE(polyester)

Color Coating thickness:Topside of coil :25um (PVDF), 16-25um (PE) Backside of coil:8-10um(PE)

Color code:Solid color as per RAL Code, wood color, marble color, or customized

specification or package can be produced as your request.

INQUIRY

Produced by advanced roller coating process, Xinyu PVDF aluminum sheet has excellent painting and high performance. Fluorin atom has the largest electronegative property that can form stable and high bond F-C, and it also has special symmetrical molecular structure.



Product

Name

 Alloys Number Temper Thickness

（mm）

 Width

（mm）

 length

（mm）

 Application
PVDF Color      Coated

Aluminum Sheet/Plate



 1100, 1050, 1060, 3003, 3004, 3005, 3104, 3105, 5005, 5052, 5754

8011

 O,H12,H14,H16H18,H19,H22,H24,H26,H28,H32,H34H36,H38, H42 H44 0.06-3.0 100-1600 60-6000 ACP, aluminum, ceilings, aluminum sheets, honeycomb panels and aluminum roofing, lighting decoration, household electrical appliances, food package (such as pop can cover & ring-pull), furniture ect.

Product Properties:

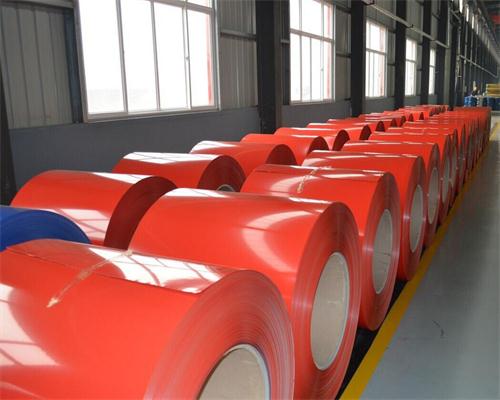

PVDF Color Coated Aluminum Coil:

Xinyu PVDF color coated aluminum coil with good PVDF paints and high performance of aluminum coil is produced by advanced roller coating. Florin atom had biggest electric negative performance and it can form a stable high bonding F-C, furthermore, it has special symmetry molecule structure.

1）Excellent weather-proof durability

2）Anti-ultraviolet

3）High erosion resistance

4）Stable color and gloss

5）Good mechanical processing performance

6）Abrasion resistance

7）Anti-impact

8）High flexibility

Performance：

The performance of PVDF color coated coil

Item Test Item Standard National standard Test Result
1 Color Difference ECCA T3 ΔE≤2.0 ΔE≤1.5
2 Gloss Difference ECCA T2 ≤10 ≤5
3 Coating Thickness ECCA T1 Two layers Min 23μm ≥25μm
Three layers Min 30μm ≥34μm
4 Pencil Hardness ASTM D3363 ≥HB HB
5 T-bend ASTM D4145 ≤2T ≤2T
6 Adhesion ASTM D3359 Grade 0 Grade 0
7 Impact ASTM D2794 ≥50kg.cm ≥50kg.cm
8 Boiling water Resistance GB/T17748 2h No change 4h No change
9 Solvent Resistance ASTM D2248 200 times paints remaining 500 times no break
10 Acidity Resistance ASTM D1308 5%HCL 24hrs No change No change
11 Alkali Resistance ASTM D1308 5%NaOH 24hrs No change color △E≤2.0 No change
12 Nitric acid Resistance AAMA620 △E≤5.0 △E≤5.0
13 Oil Resistance ASTM D1308 20＃oil 24hrs No change No change
14 Salt Spray Resistance ASTM B117 4000hrs ≤Grade 1 No change
15 Abrasion resistance ASTM D968 ≥5L/μm ≥5L/μm
16 Dirt Resistance GB/T9780 ≤5% ＜5%
17 Color retaining GB/T16259 4000 hrs△E≤4.0 4000 hrs △E≤3.0
18 Gloss weaken Level 4000 hrs ≤ Grade 2 4000 hrs ≤ Grade 2
19 Chalking 4000 hrs No change 4000 hrs  No change

Packing and Transportation:

1) Packing detials: Plate/coil is placed to the iron or wooden pallet ,wrapped by water-proof craft paper perfectly, then fixed by iron narrow belt.

2) Port: Qingdao port or other main ports in China.

3) Container: 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(Height)  , loading 18~25 tons .

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(Height) , loading 20~28 tons.
